Compatible Model NO. :
Nihon Kohden Medical:Bedside Monitor
BSM-4101,4103,4111,4113 LifeScope P;
BSM-5105,5135 Life Scope A;
BSM-2351,2353 Life Scope L;
BSM-2301,2303 Life Scope I;
BSM-73 .
Specifications:
- Safety: IEC 60601-1-1 approved, conformity with MDD 93/42/EEC and EN9919:2005
- Patient sizes: Pediatric
- Ambient temperature: 0 to 40°C(32 to 104°F)
- Relative humidity: 15% to 95%
- Measurement technology: Tri-wavelength LEDs & photo detector
- LED wavelength: 660nm/880nm/940nm
- SpO2 accuracy: ±3 (70-100%); Unspecified (0-69%)
- Pulse rate range: 20-250bpm
- Pulse rate accuracy: ±3 (20-250bpm)
- Packages: non-sterilization, individual package with instruction
http://www.spo2-ecg.com
Bedside Monitor: BSM-4101,4103,4111,4113 Life
scopeP,BSM-5105,5135 Life scopeA,BSM-
2351,2353 Life scopeL,BSM-2301,2303 Life
scope I
| OEM P/N | Part No. | Description(Cable & Connector) |
| TL-201T | NKA0002 | 8ft,Rectangle 14pin>DB9F,Nihon Konden |
  |  |
Suitable for Nihon Kohden:AL-800PA Module BSM-1101 LifeScope
EC,BSM-2101/2 LifeScope L,BSM-3101 LifeScope LC,BSM-7100/7200
LifeScope 8,BSM-8200/1 LifeScope 12,BSM-8301/2 LifeScope 9,SM-8800
LifeScope14,OLV-1100A
| OEM P/N | Part No. | Description(Cable & Connector) |

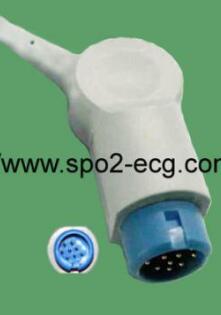

| | NKA0001 | 8ft,Round 10pin>DB9F,Nihon Kondon |
  | |
Nihon Kohden OPV-1500 , OPV-3100 OEM
Number:JL-302T
| OEM P/N | Part No. | Description(Cable & Connector) |
| JL-302T | NKA0003 | 8ft,3M 20pin>DB9F,Nihon Konden |
  | |
TECHNICAL PARAMETERS:
| LEDS | Red | 660nm normal |
| Infrared | 880 / 905 / 940nm normal |
| Test Range | Oxygen Saturation(%SpO2) | 0 % to 100 % |
| Pulse Rate(bpm) | 30 to 245 |
| Accuracy | SpO2 | ± 2%(90% -1 00 %) |
| ±3%(70%-89 %) |
| unspecified(0-69 %) |
| Pulse Rate | ±1 bpm(30 - 59bpm) |
| ±2 bpm(60 - 149bmp) |
| ±3 bpm(150 - 245bmp) |
| Storage and Transport Environment | - 10°C~ + 40°C |
| Operating Temperature | + 5°C~ + 40°C |
| Operating/Storage/Transportation humidity | 0% - 80% |
| Hyperbaric pressure | 86kPa - 106 kPa |
Products more details
1. Adult finger clip type spo2 sensor
Such blood oxygen probe, sensor acquires signal on adult fingers, the hard plastic shell for fixed sensors is larger and fits adult measurement, the instruments of different brand its probe shell may be slightly different, different shell shape cannot influence the performance of product.
2. Pediatric finger clip type spo2 sensor
Such blood oxygen probes, sensors in children's fingers acquisition signal, the hard plastic shell used in fixed sensor is smaller and measurements are suitable for children.
3. Adult Soft Tip type spo2 sensor./soft rubber/soft silicone tip
Such blood oxygen probe, sensor covered on adult finger to collect signals, the soft gel coat used in fixed sensors is bigger, suitable for adults. Different brands of instruments and its probe coat may be slightly different, different shape of coat cannot influence the product performance.
4. Neonatal wrap spo2 sensor or"Y" type wrap spo2 sensor.
The type of blood oxygen sensor, the sensor wrapped in neonatal acquisition signals on his foot, fixed sensors used in soft gel coat is bind package type, suitable for newborns.
